Daihatsu Gran Max Box Van and Luton Van
The Gran Max Box Van and Luton Van are the Gran Max Pick-Up with an enclosed cargo body on the rear deck. The box van costs RM86,602 on the road and the luton van RM87,182. Both use the 1.5-litre petrol engine and a 5-speed manual gearbox, and are made to order.
- Brand-new CBU unit, imported fully built from Daihatsu's plant in Jakarta, Indonesia. Not recond.
- Trade-in welcome: your current vehicle can go towards the price. WhatsApp us for a valuation.
Box van or luton van? The one difference
Both bodies go on the same Gran Max Pick-Up cab and chassis, and both are built to order. The difference is where the body stops: a box van ends behind the driver's cab, a luton van carries on forward over the cab roof.
Box vanBody ends behind the cab
A plain enclosed box on the rear deck. The cab roof stays clear.
Luton vanBody carries on over the cab
The body extends forward over the cab roof, so the load space runs further forward on the same chassis.
| Item | Box van | Luton van |
|---|---|---|
| Body shape | Rectangular box behind the cab | Box with a section over the cab roof |
| Load space | Deck length only | Deck length plus the over-cab section |
| Suits | Pallets, cartons, appliances | Furniture, mattresses, long bulky loads |
| Body cost | RM9,455 | RM10,006 |
| On-the-road price | RM86,602 | RM87,182 |
Same vehicle either way: 1.5L petrol, 5-speed manual, 2,100 kg gross vehicle weight, made to order. The luton's extra space is volume, not extra weight capacity.
What is the Gran Max Box Van and Luton Van?
A box van body puts an enclosed cargo box on the Pick-Up's rear deck, so goods stay dry and out of sight. A luton van adds a section that extends forward over the cab roof, giving more load space for the same chassis.
Both appear in Daihatsu's list of Gran Max body applications. The extra space of a luton adds volume, not weight capacity, so it suits bulky but light loads.

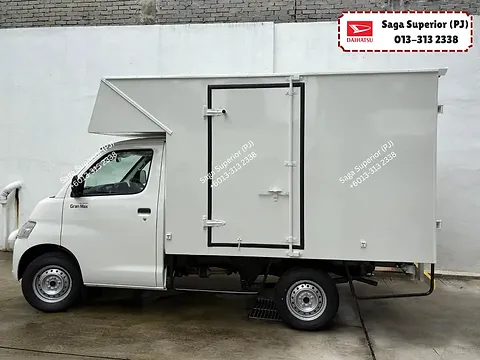

Our recent Gran Max luton van build
- Luton section over the cab roof for extra load space.

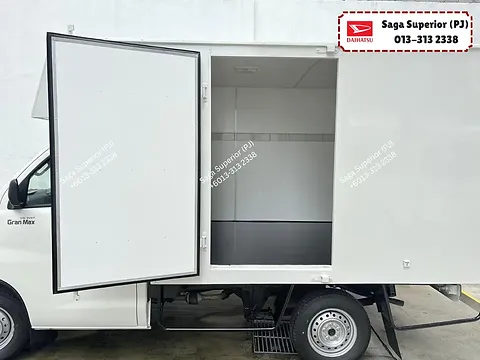

- Side door on the left (kerbside), so you can load and unload from the pavement.

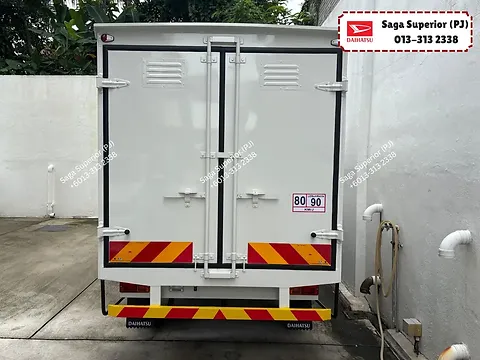

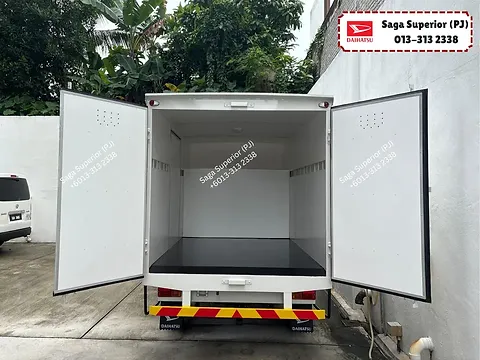

- Twin rear doors that open wide, with air vents.
- Ceiling light inside the cargo box.
- Reflective rear markings and a rear underrun bar.

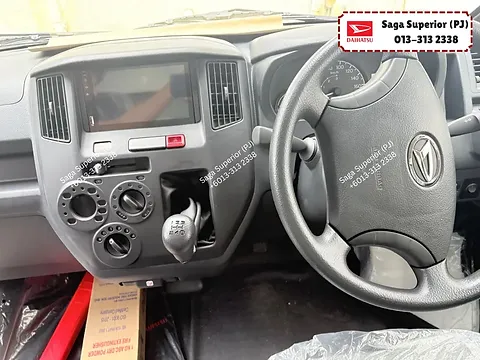

- Cab with touchscreen head unit, air-conditioning and 5-speed manual gearbox. A 1 kg fire extinguisher was supplied with this build.
Body layouts vary by build. Tell us if you need the side door, vents or lighting arranged differently.
Gran Max box van and luton van dimensions
Cab and chassis (same for both bodies)
| Wheelbase | 2,650 mm |
|---|---|
| Cab height | 1,880 mm |
| Front overhang | 585 mm |
| Rear overhang | 1,215 mm |
| Rear track | 1,440 mm |

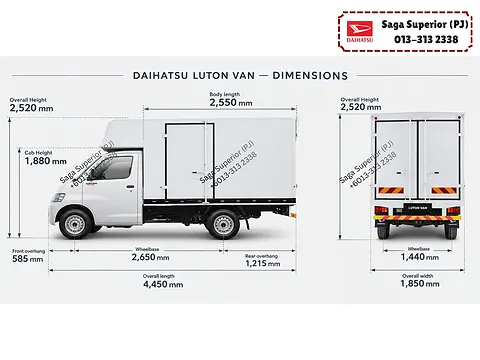

Luton van body
| Overall length | 4,450 mm |
|---|---|
| Body length | 2,550 mm |
| Overall width | 1,850 mm |
| Overall height | 2,520 mm |
Luton van with our standard body. At 2,520 mm high it is about 640 mm taller than the Pick-Up cab, so check clearance for covered car parks and loading bays. Box van body dimensions: ask us.
Daihatsu Gran Max Box Van and Luton Van price
| Body | Body cost | On-the-road price |
|---|---|---|
| Box Van | RM9,455 | RM86,602 |
| Luton Van (A) | RM10,006 | RM87,182 |
OTR breakdown: Box Van
| Gran Max Pick-Up selling price (cab and chassis) | RM73,388 |
|---|---|
| Admin Charges | RM200 |
| Number Plate & Signwriting | RM150 |
| Weighing & Inspection Fee | RM180 |
| 1 Year Road Tax | RM342 |
| Registration Fee | RM60 |
| Ownership Claim | RM50 |
| Box Van body | RM9,455 |
| Insurance (indicative, sum insured RM83,000) | RM2,777 |
| On-the-road price (OTR) | RM86,602 |
OTR breakdown: Luton Van (A)
| Gran Max Pick-Up selling price (cab and chassis) | RM73,388 |
|---|---|
| Admin Charges | RM200 |
| Number Plate & Signwriting | RM150 |
| Weighing & Inspection Fee | RM180 |
| 1 Year Road Tax | RM342 |
| Registration Fee | RM60 |
| Ownership Claim | RM50 |
| Luton Van (A) body | RM10,006 |
| Insurance (indicative, sum insured RM84,000) | RM2,806 |
| On-the-road price (OTR) | RM87,182 |
Prices last confirmed 22 October 2026. OTR includes admin charges, number plate, road tax, registration, ownership claim, weighing and inspection, the body cost and indicative insurance.
Prices are subject to change without notice. Insurance is indicative. WhatsApp us for the latest confirmed price and promotions.
Compare every body on the Gran Max Pick-Up page or the full Gran Max price list.
Best for
- Parcel and e-commerce delivery
- Furniture and appliance delivery
- House and office moving
- Retail and wholesale distribution
- Event and exhibition equipment
Why the Gran Max for this body
- Enclosed body keeps cargo dry in heavy rain and out of sight when parked.
- The Pick-Up deck sits 755 mm from the ground (Daihatsu brochure), so the body floor stays at a workable height for hand loading.
- Rear leaf-spring suspension and 175R14C commercial tyres, built for carrying load.
- 4.9 m turning radius for narrow lanes, back alleys and loading bays.
Before you order
- Luton or box? The luton costs RM580 more on the road. Choose it if your loads are bulky and light; the box van is enough for most parcels and stock.
- Ask us for the internal size of each body before you order. It decides how many boxes or pallets fit.
- Side door opening: the enclosed body can be built with a side door on one side only, or on both sides (one-door or two-door opening). Tell us which side you load from.
- If you want an enclosed vehicle with an automatic gearbox or sliding side doors, compare the Panel Van.
- The Pick-Up's gross vehicle weight is fixed at 2,100 kg, and the body you choose counts toward it. A heavier body leaves less weight for cargo than a plain steel deck. Your van's registered weights are set at the weighing and inspection, which is already in the OTR price.
- All bodies and custom changes are subject to Daihatsu HQ approval. Tell us your requirements and we submit them.
Gran Max Pick-Up base vehicle specifications
| Engine | 1.5L petrol 2NR-VE, Euro 4, 72 kW at 6,000 rpm, 134 Nm at 4,400 rpm |
|---|---|
| Gearbox | 5-speed manual only (no automatic on the Pick-Up) |
| Drive | Rear-wheel drive |
| Rear suspension | Leaf spring |
| Tyres | 175R14C (commercial-rated) |
| Gross vehicle weight | 2,100 kg |
| Kerb weight (cab and chassis, before body) | 1,090 kg |
| Load deck | 2,480 x 1,585 mm, 755 mm from the ground |
| Cab step height | 430 mm |
| Ground clearance | 190 mm |
| Turning radius | 4.9 m (kerb to kerb) |
| Fuel tank / consumption | 43 litres / 12.5 km/L (Daihatsu test conditions) |
| Safety | ABS, Vehicle Stability Control, dual SRS airbags, reverse sensor |
| Water wading | 600 mm at 10 km/h (Daihatsu figure) |
Full figures are on our specifications and e-brochure pages.
Financing
- Maybank 3.2% (variable, reducing; company registered with SSM for over 3 years).
- Public Bank 3.5% to 3.9% (fixed, reducing; easier approval).
Example: about RM992 to RM1,016 a month on RM82,843 (Pick-Up plus box van body, 10% down, 7 years). Subject to bank approval.
Try the Gran Max loan calculator →Daihatsu Business Fleet Program
From the Daihatsu Gran Max brochure. Ask us whether your purchase qualifies.
- 5 years / 150,000 km standard manufacturer warranty
- 24/7 Daihatsu road assist (towing and minor roadside repair)
- Daihatsu Mobile Service: on-site servicing for fleet customers
- Service credit term of up to RM10,000 with 30 days credit (upon application)
- Maintenance service contracts and special rebates on fleet purchases
